Music Box

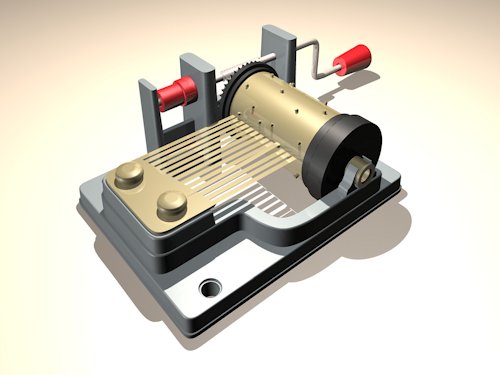

A music box or musical box is an automatic musical instrument that produces sounds by the use of a set of pins placed on a revolving cylinder or disc so as to pluck the tuned teeth of a steel comb. Some of the more complex boxes also have a tiny drum and/or small bells, in addition to the metal comb. The cylinders were normally made of metal and powered by a spring. In some of the costlier models, the cylinders could be removed to change melodies, thanks to an invention by Paillard in 1862, which was perfected by Metert of Geneva in 1879. In some exceptional models, there were four springs, to provide continuous play for up to three hours.

The very first boxes at the end of the 18th century made use of metal disks. The switchover to cylinders seems to have been complete after the Napoleonic wars. In the last decades of the 19th century, however, mass-produced models such as the Polyphon and others all made use of interchangeable metal disks instead of cylinders. The cylinder-based machines rapidly became a minority.
