Installing the Quick-Connect Harness

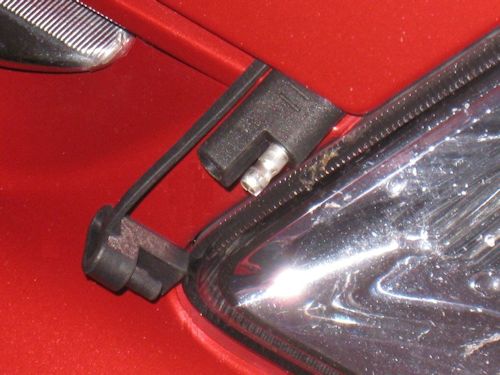

The other end of the Quick-Connect Harness I placed at the corner of the hood cover. For purposes of showing you I removed the end of the protect end cap of the harness. Normally when I drive off I place the protective end back on.
